CRYOPIPE®
Cryopipe® composite cryogenic pipe
Composite pipe engineers for extreme-temperature infrastructure, combining smooth bore, low thermal movement, low weight and reel deployment
Enoflex selects composite materials engineered for the challenging environments found in liquid and gas energy transfer.
Two core materials make up the current range.
WHAT IT IS

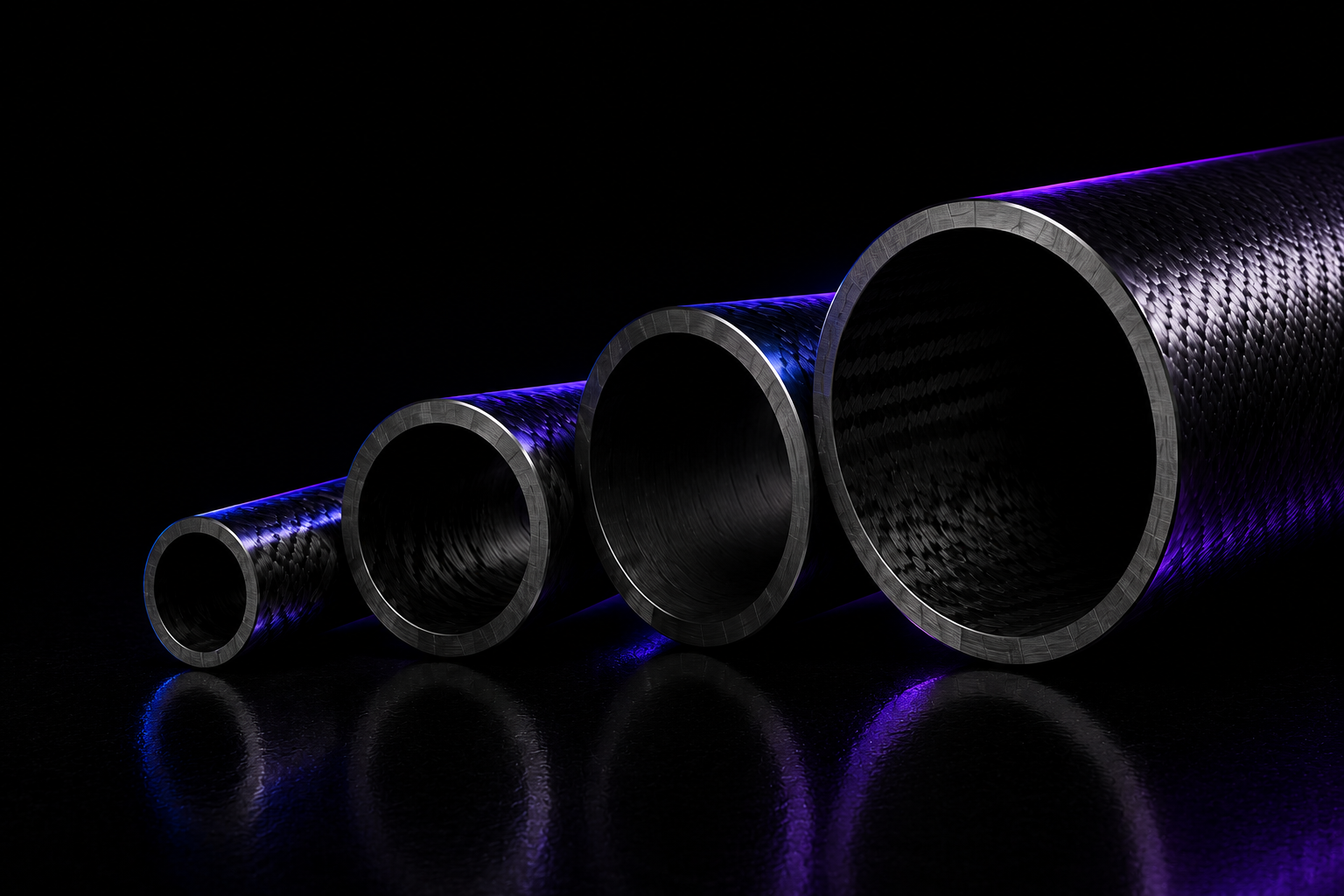

Single Polymer Composite (SPC)
Patented material using long, unidirectional fibres combined in a matrix of the same polymer to produce a high-strength tape. The tape is fused in layers using lasers in Enoflex's precision manufacturing process, then spooled onto transportation or installation reels. SPC pipe performs across a wide range, from ambient to cryogenic applications.

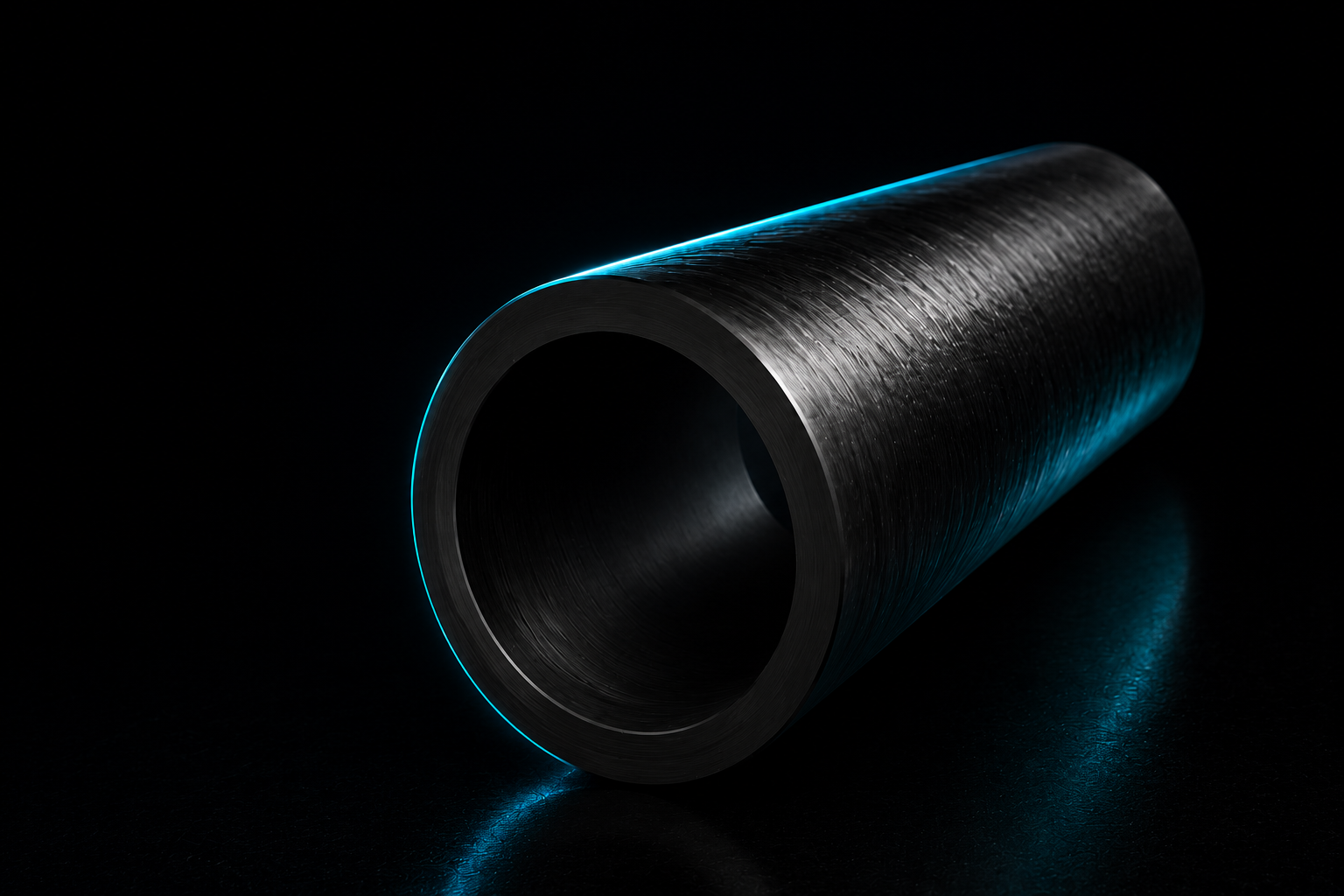

PEEK-CF
Made from carbon fibre and PEEK, with high resistance to heat, common oilfield chemicals and permeation. Unidirectional tape is fused by laser, layer by layer, in a fully automated robotic process to form a fully bonded structure with a smooth bore. Tape angle can be adjusted to optimise flexibility, stiffness and strength. Developed in-house by the Enoflex team.

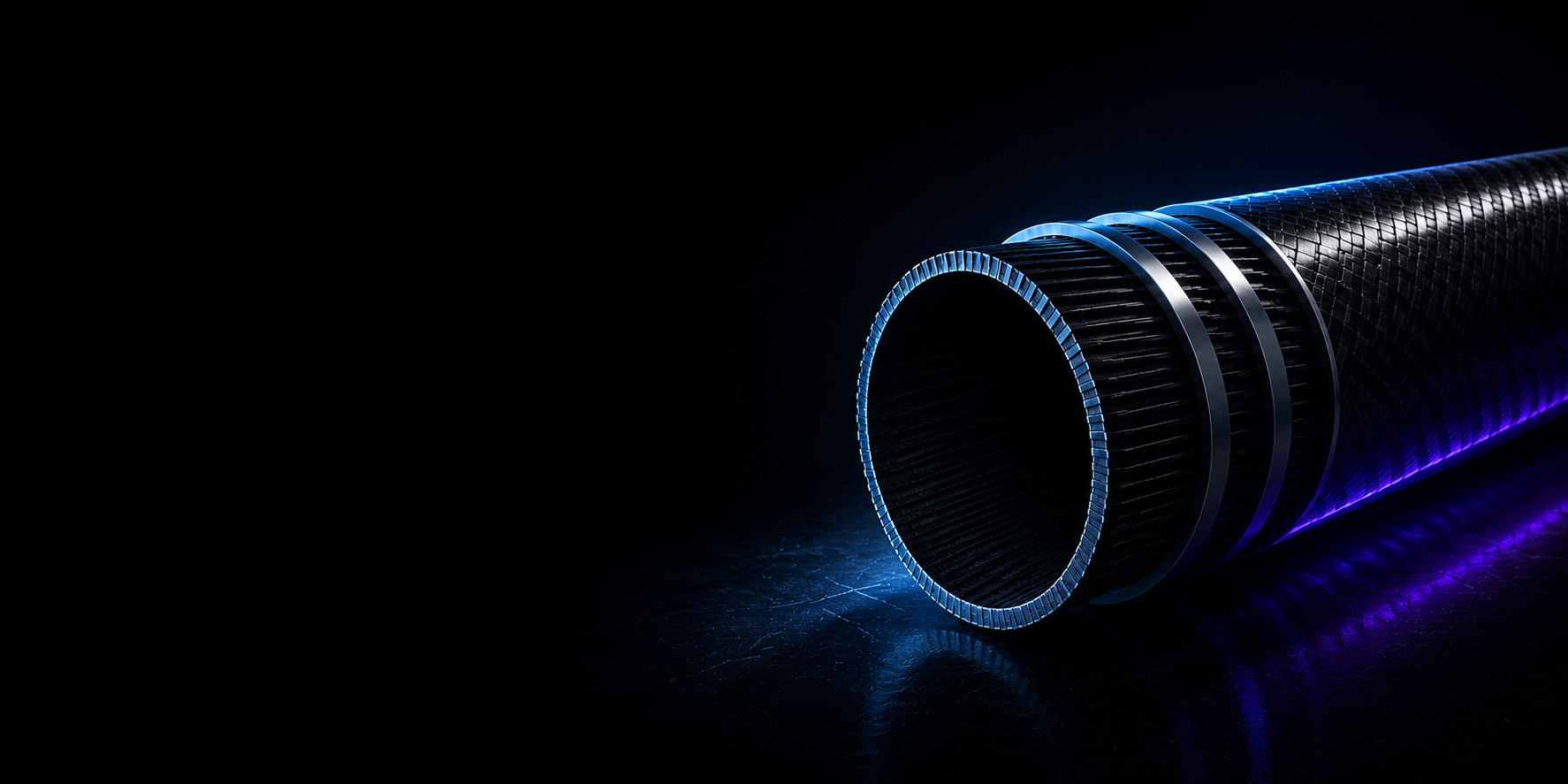

Advance composite construction fused layer by layer using laser energy to create a fully bonded pipe with a smooth bore.
HOW CRYOPIPE® WORKS
Smooth bore
No corrugation, unlike stainless steel hose, reducing friction losses
Low coefficient of thermal expansion
Contracts far less than steel when cooled to cryogenic temperatures.
Composite construction
SPC or PEEK-CF, built in layers for pressure and thermal performance.
Reel deployment
Manufactured and supplied on reels, pulled through in continuous lengths.
↓ ~ 3x
Lower pressure drop
Reduced pressure drop versus corrugated steel
PERFORMANCE ADVANTAGE
↓ ~ 3x
Lower thermal contraction
Less movement reducing the need for expansion loops
𓍝 ~ 3x
Lighter installation
Easier to handle on site, reducing installation time and cost
✎
Application specific design
Tape angle and layup can be tuned per project
Bore profile
Thermal contraction
Weight
Installation
Pressure drop
CRYOPIPE® VS METAL PIPE
CRYOPIPE® COMPOSITE PIPE
Smooth
Around 3x lower than steel
Around 3x lighter than steel
Pulled from reel, no on-site welding
Lower, smooth bore
STEEL/CORRUGATED STAINLESS
Corrugated
Requires expansion loops
Heavier, more support needed
On-site welding required
Higher, corrugated bore
APPLICATIONS
Superconducting power systems
Composite cryostat and pipework for HTS cable cooling.

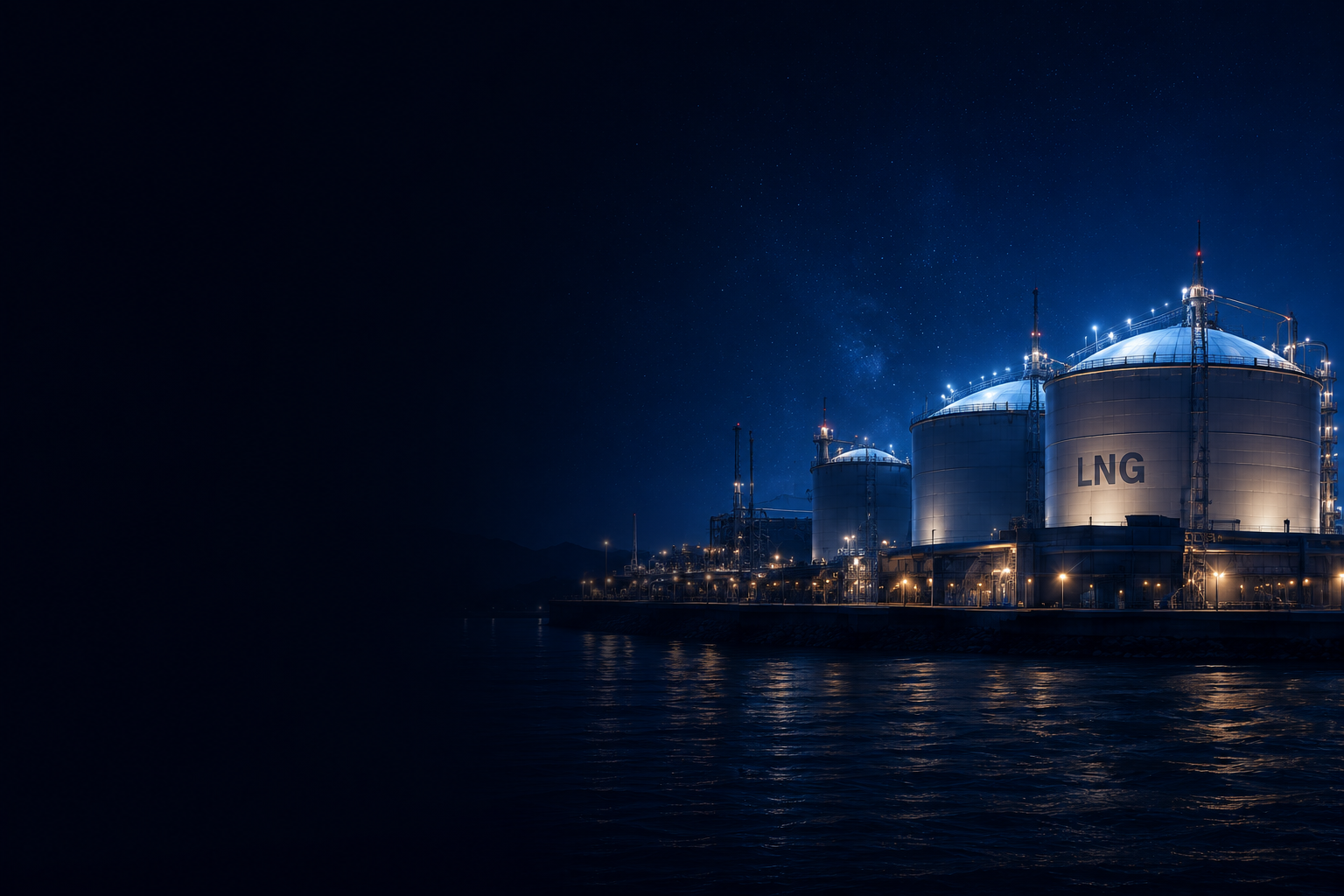

LNG infrastructure
Composite pipe for LNG recirculation and vapour return.
Liquid hydrogen aviation
Lightweight composite pipe for aircraft fuel systems at -253°C.
TECHNICAL PARAMETERS
Current manufacturing capability and product configurations.
Diameter
Continuous length
Materials
Operating temperature
End fittings
Up to 8"
In excess of 3km
SPC (Single Polymer Composite), PEEK-CF
Cryogenic to ambient; suitable for LNG, LH2, LN2
Factory-installed steel end connectors
