Advanced composite pipe manufacturing and test capability

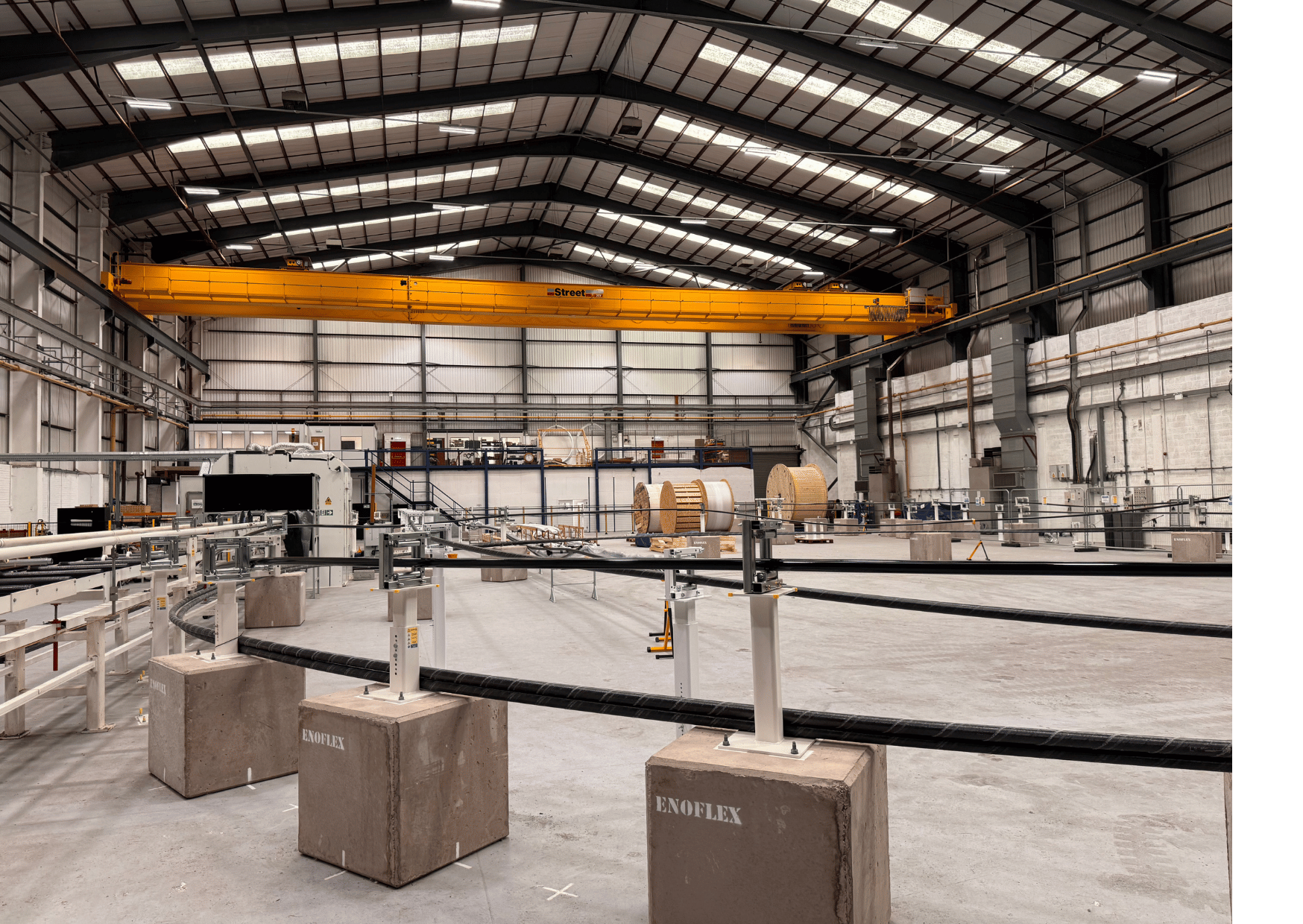

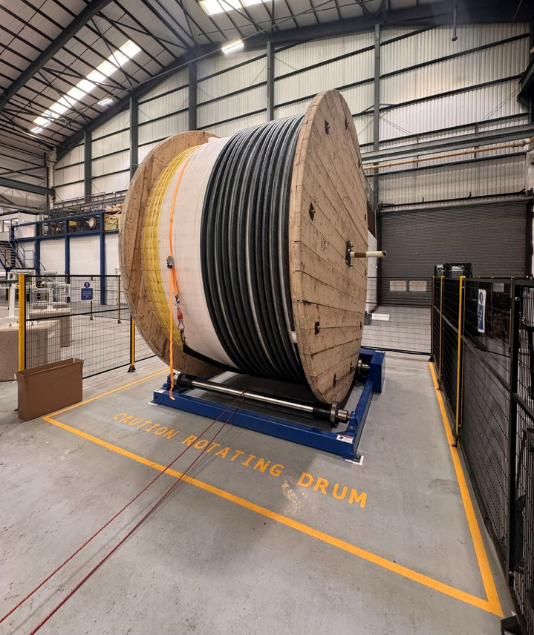

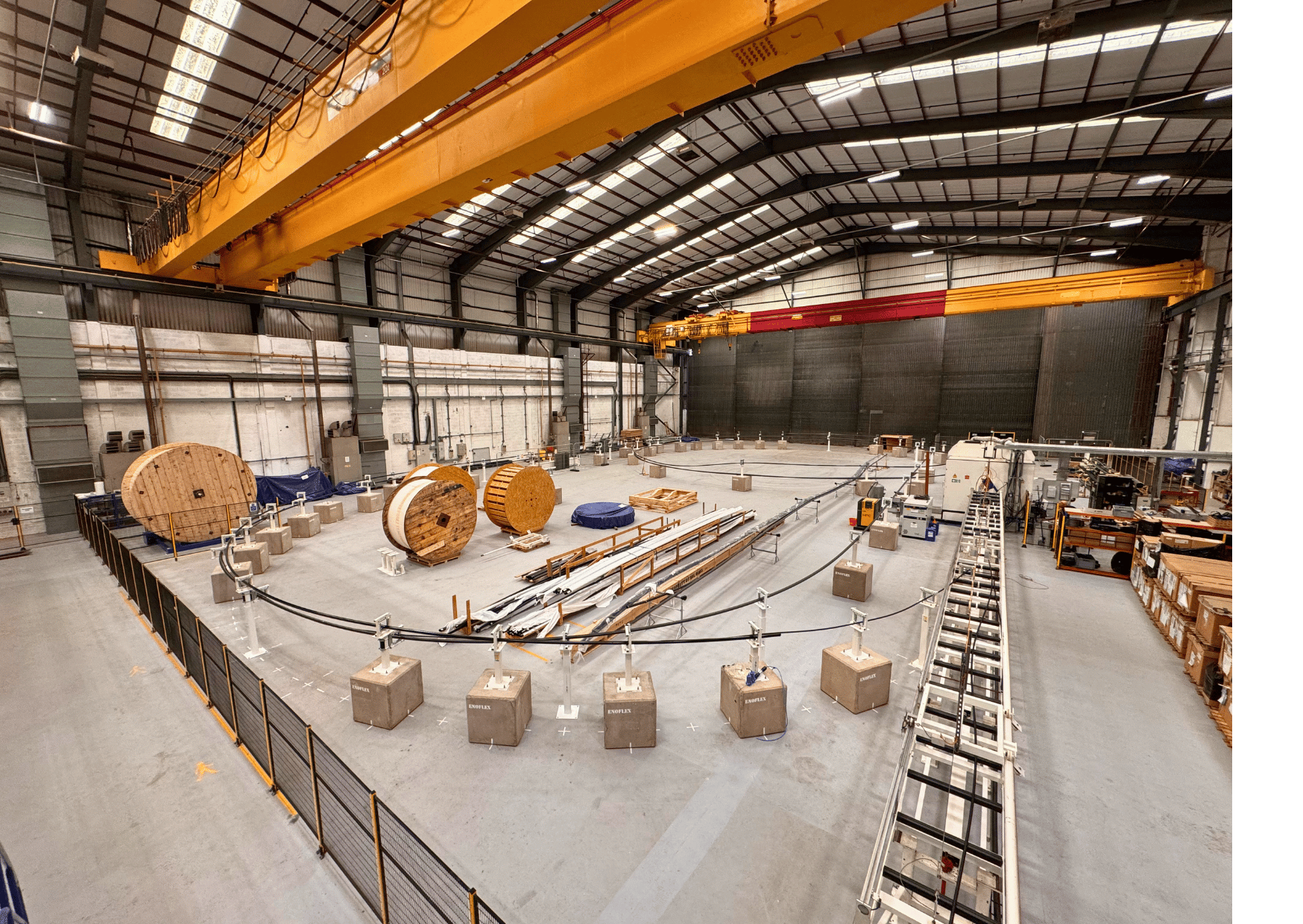

Enoflex’s 1,500m² manufacturing and test facility is located directly on the international port of Southampton, UK. The facility combines clean-room testing with the capability to manufacture multiple kilometres of continuous-length Cryoreel® composite pipe.
Manufacturing
& automation
Design &
process development

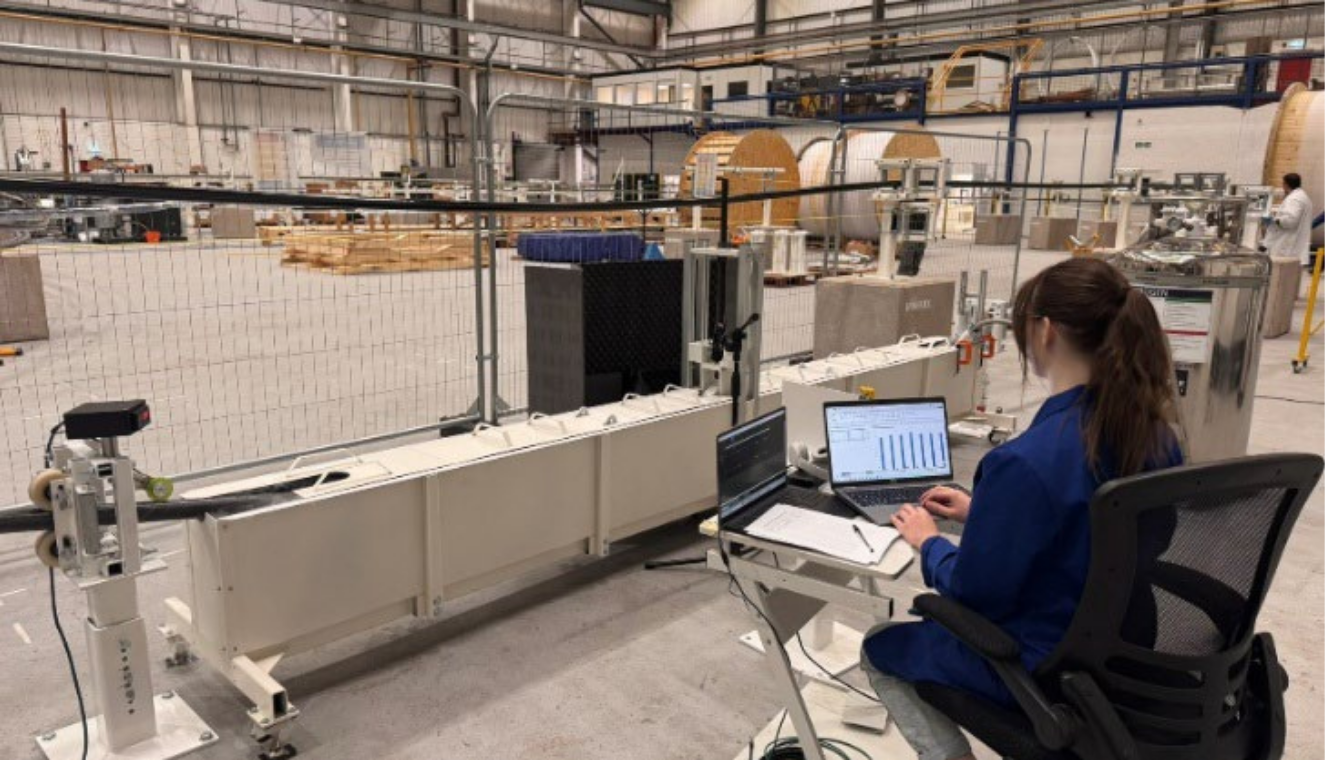

Test & validation
An advanced thermoplastic composite pipe manufacturing platform integrating laser-assisted tape placement, precision sensing, automated process control and specialist in-house engineering.
5km
continuous pipes manufactured0.7mm
mean tap gap demonstrated16-150mm
manufacturing diameter range9001:2015
ISO certified-
Controlled heating and consolidation of thermoplastic composite materials
-
Synchronised machine motion and closed-loop control of critical process parameters
-
Vision-assisted process monitoring
-
Configurable multilayer pipe manufacture across a broad range of diameters, materials and reinforcement architectures
APPLICATIONS

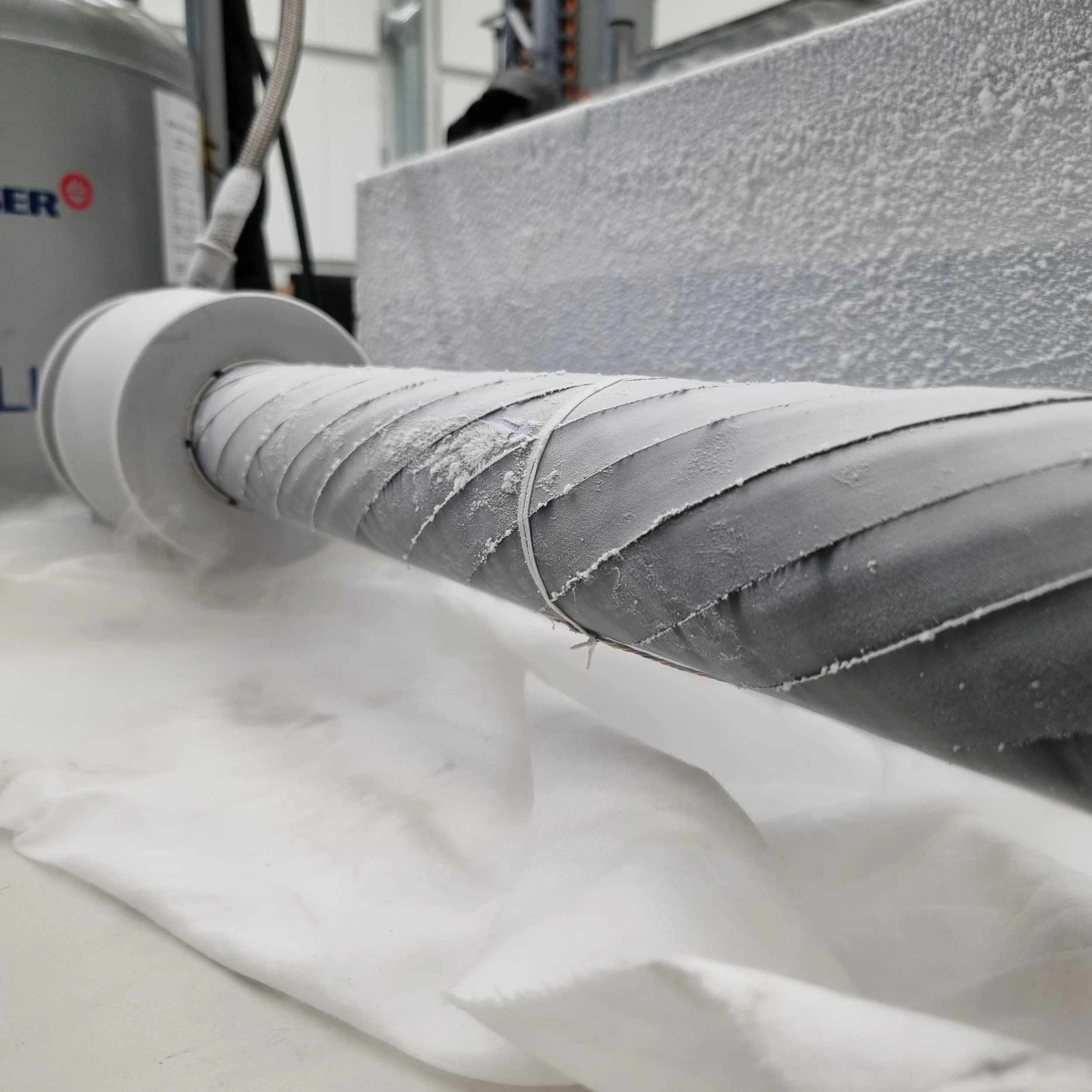

Composite cryostat for cooling and former for HTS cable at -196°C.

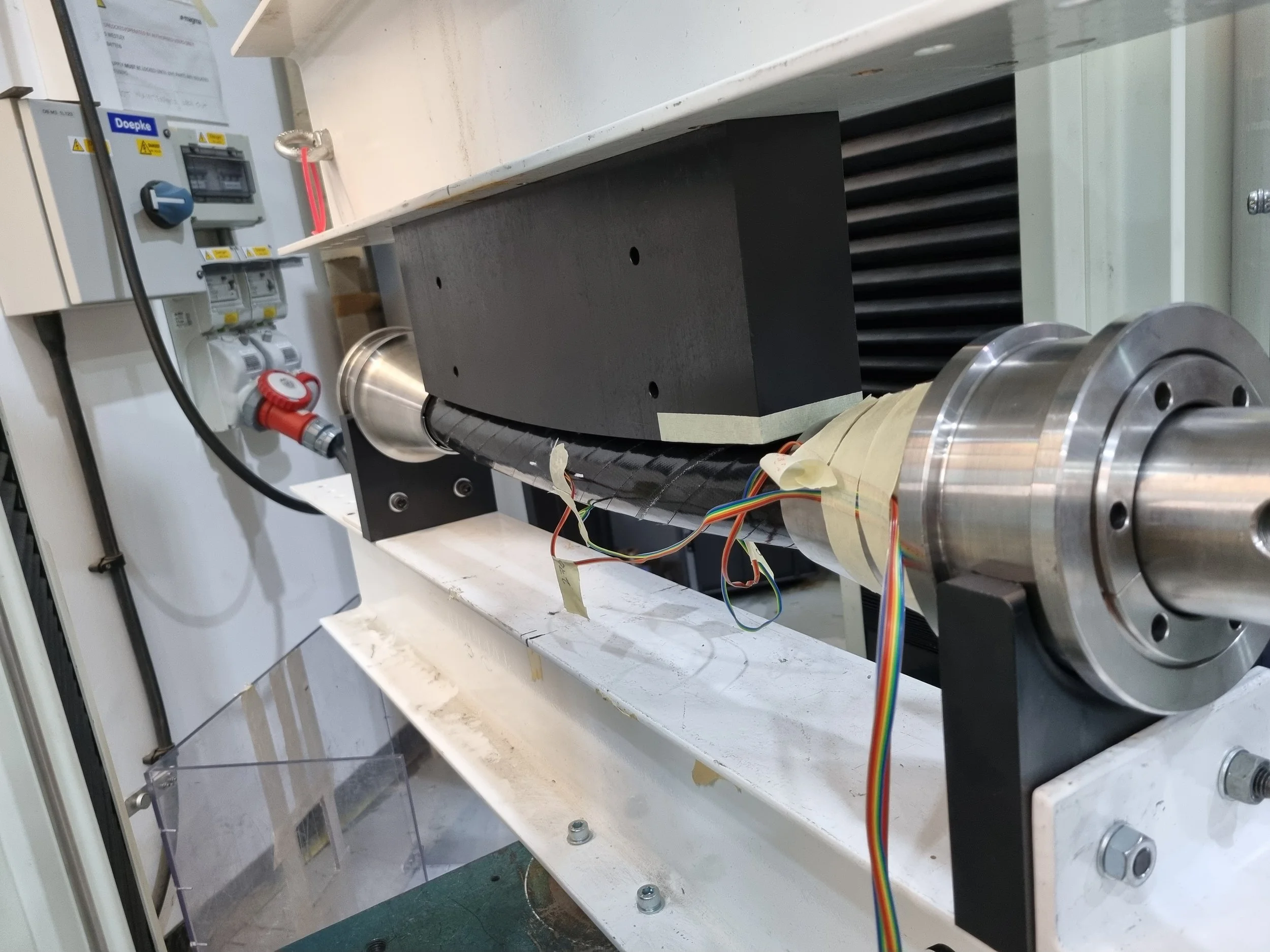

Composite LNG terminals and pipeline at -162°C.

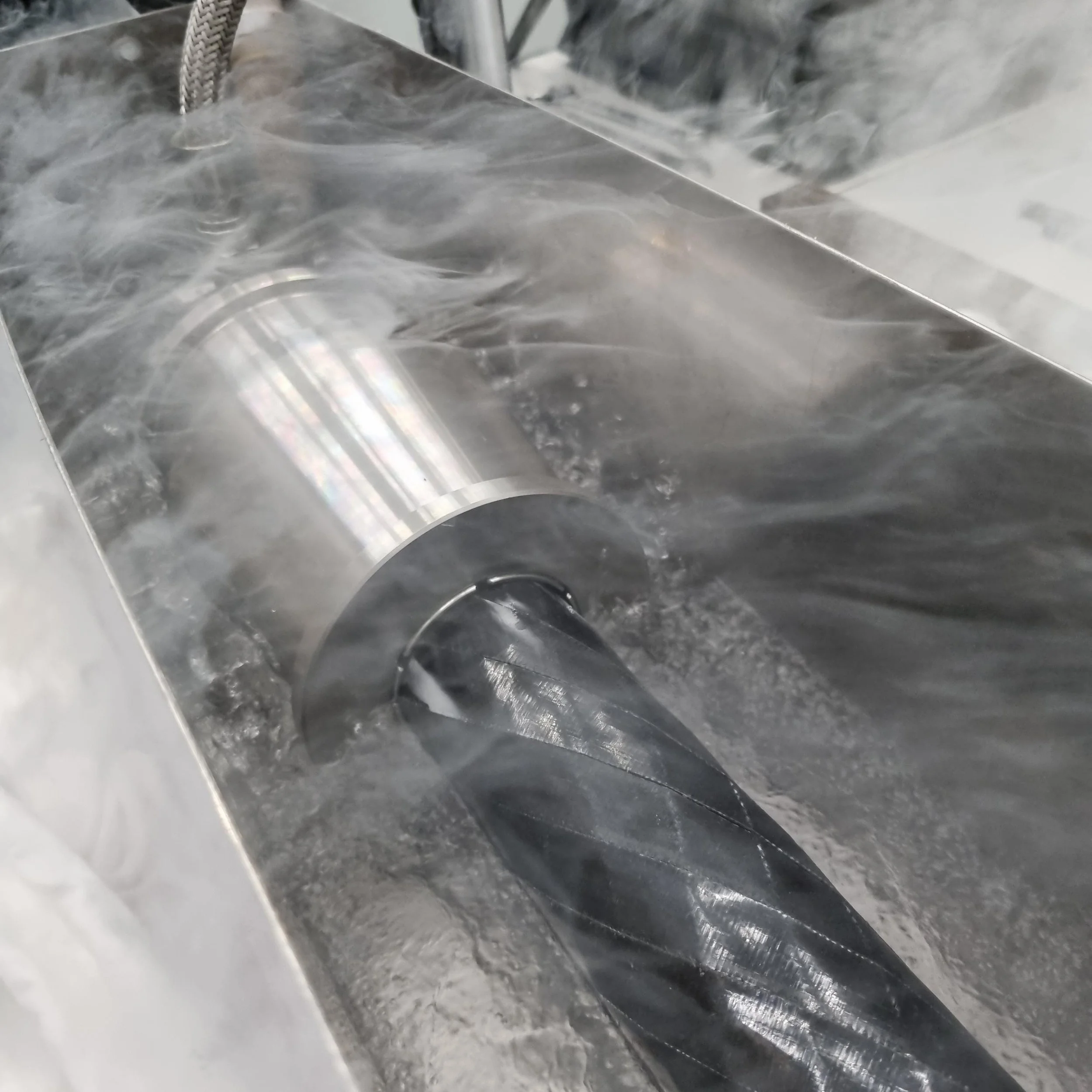

Lightweight composite pipe for liquid hydrogen fuel systems at -253°C.
